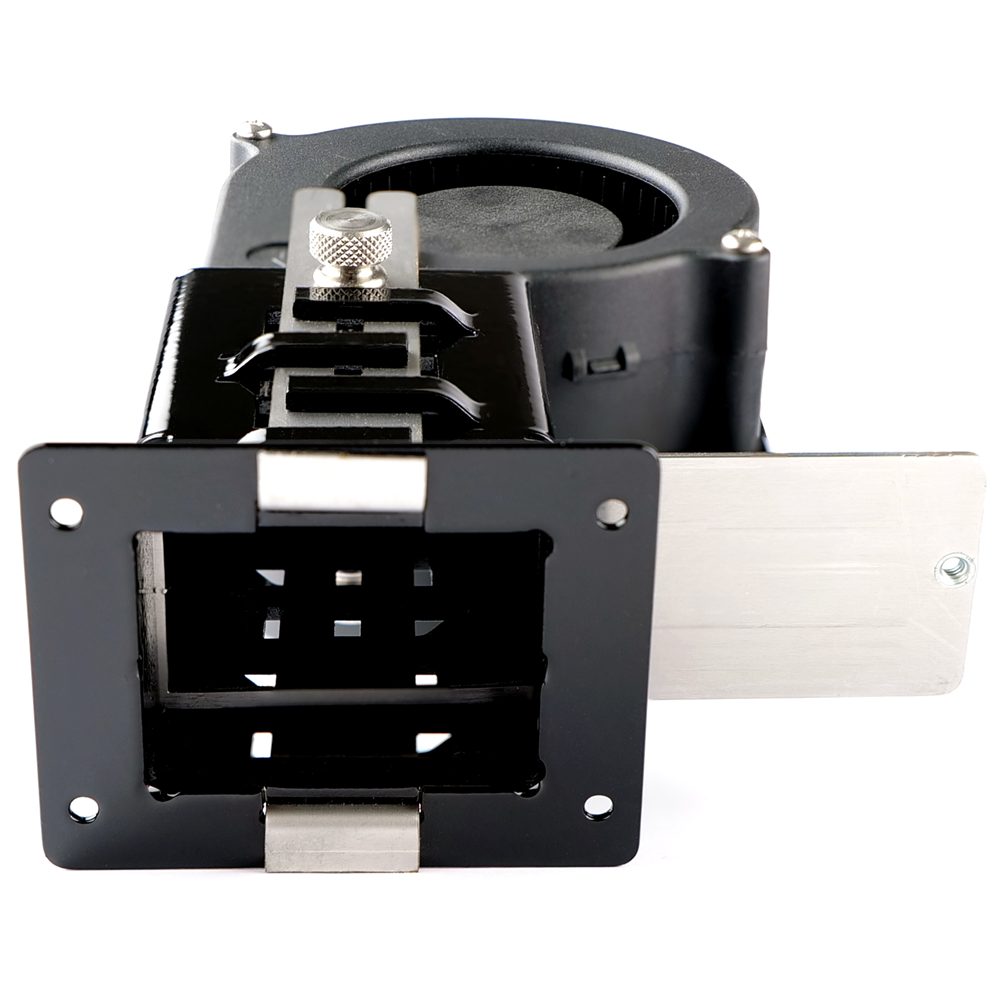

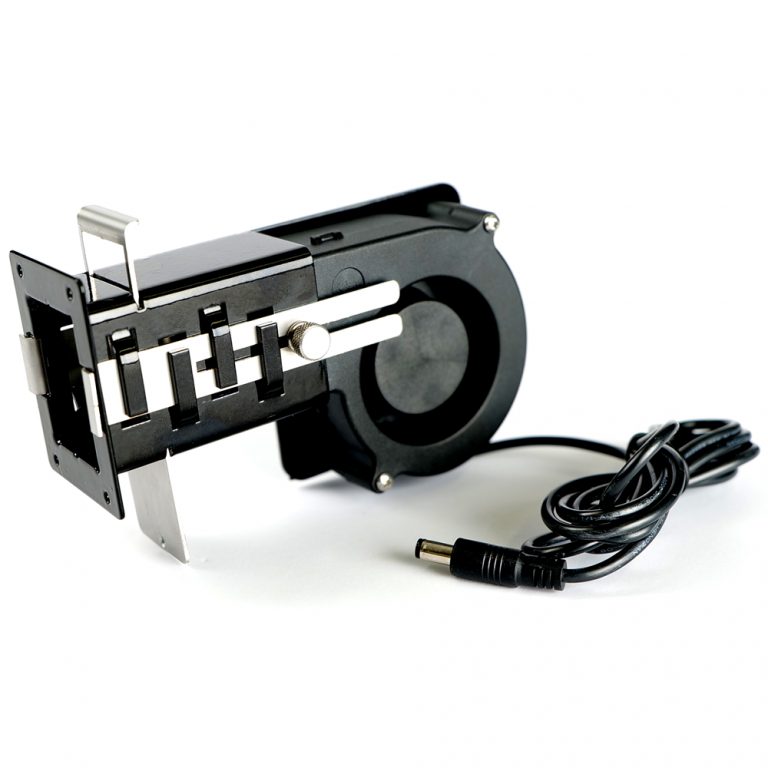

Fireboard - Drive Blower 20CFM


Important Note: Please check with our store on (03) 9462 1522 for stock availability before you visit, or by using the form below.

Usually Ships in 7-10 Business Days
  • Included in box: Drive blower, cable, 1 x 70 x 50mm adaptor plate and 1 x 87 x 77mm adaptor plate
  • Variable Speed 20 CFM Blower used with FireBoard Drive to maintain precise temperature control
  • Maximum blower speed of 20CFM (Cubic Feet per Minute)
  • Fireboard - Drive Blower 20CFM

    Powerful blower that can be installed on many smokers using included adapter plates. Built-in sliding damper to fine tune airflow.

    Small/Medium Adapter Plate: 2.75 x 1.97″ (70 x 50mm)

    Large/XL Adapter Plate: 3.43 x 3.03″ (87 x 77mm)


    • Variable Speed, powered by FireBoard’s internal battery **
    • Power source: 12 VDC, 0.68A, 8W (not included)
    • Cable length: 4.5 ft (1.4 m).
    • Power connector: 2.5 mm barrel plug
    • Blower maximum flow rating: 20 CFM
    • Blower opening: 1.2 x 1.6″ (30 x 40 mm).
    • Flange outer dimension: 1.95 x 2.45″ (49 x 62 mm).
    • Flange mounting hole distance: 1.32 x 2.05″ 34 x 52 mm, hole size, 3 mm in diameter.

    Note: Blower does NOT include Drive Fan Control Cable, which is needed to use a fan with the FireBoard 2 or FBX11. FireBoard 2 Drive/Pro models will power fan directly, no Drive Fan Control Cable necessary.

    ** For maximum fan speed, external power is required.

    Please review the specifications and measure your cooker’s vent size to determine compatibility.
